Stage 4 — Workflow Graphs & Agent Frameworks

In Stage 3, you wrote an Agent Loop yourself. This stage first turns multi-step work into a Workflow Graph, then chooses a Framework to help connect it. Understand the work map first, then choose the toolbox, so you do not make things complicated just because a framework is popular.

📌 Learning Goals

After this stage, you can:

• Explain the difference between an Agent Loop, a Workflow Graph, an Agent framework, and a multi-role system in your own words.
• Choose the simplest tool that can finish the task instead of adding roles just because they are fashionable.
• Complete five exercises and compare LangGraph, CrewAI, Smolagents, and Pydantic AI hands-on.
• Explain which problems passing work onward, saving progress, and human approval each solve.

🧩 Eight Core Terms First

• Workflow / Workflow Graph: Like following a recipe, then drawing every step and next stop. The program writes the nodes, edges, and branches first; the model only completes work that needs judgment inside the route.
• Framework: A box of ready-organized building blocks. It connects loops, tools, records, and error handling for you; the larger the box, the more details it can hide.
• Agent: Like an assistant given a goal. The model can decide its next step from the current result, but the program still controls real permissions, validation, and stop conditions.
• Orchestration: Like a traffic controller. It decides who works first and next, who receives the data, and how to recover from a failure.
• State: Like a notebook used while working. It remembers the current input, tool results, progress, and the data needed for the next step.
• Checkpoint: Like a game save. After the process is interrupted, it can continue from the saved point instead of starting everything again.
• Handoff: Like passing an assignment sheet to another classmate. The next Agent needs enough context to take over, but must not receive permissions it does not need.
• Human-in-the-loop (HITL): Like raising your hand for the teacher to check first. The program pauses before spending money, sending email, deleting data, or publishing, and continues only after a person approves.

🧭 First Separate Loop, Graph, and Framework

Name	Five-year-old-friendly version	Correct boundary and where to learn it
Agent Loop	The assistant does one step, checks the result, then chooses the next step	The within-one-run loop from Stage 3: model → tool call → execute → tool result → model
Workflow Graph	Draw every station and road	Represents work order with node, edge, branch, and state; each box can be an Agent, tool, check, or human approval
Agent Framework	A toolbox that helps connect the wires	Provides runner, tool, state, handoff, checkpoint, and related parts; one Agent can use it too
Loop Engineering	Design how it repeats, validates, and stops	Stage 7 adds budgets, verification, recovery, and human escalation
Production orchestration	Make the whole work map run safely in real use	Stage 7 adds observation, recovery, and stop rules around multiple loops, tools, and human approvals; emerging writing may also call this Graph Engineering

A framework is the toolbox; a Workflow Graph is the work map you draw; production orchestration is the engineering work that makes the map run safely. Graph Engineering is an emerging, non-standard label, not another name for a framework. Multi-Agent systems can go into a graph, but not every graph needs multiple Agents, and not every node has to be an Agent.

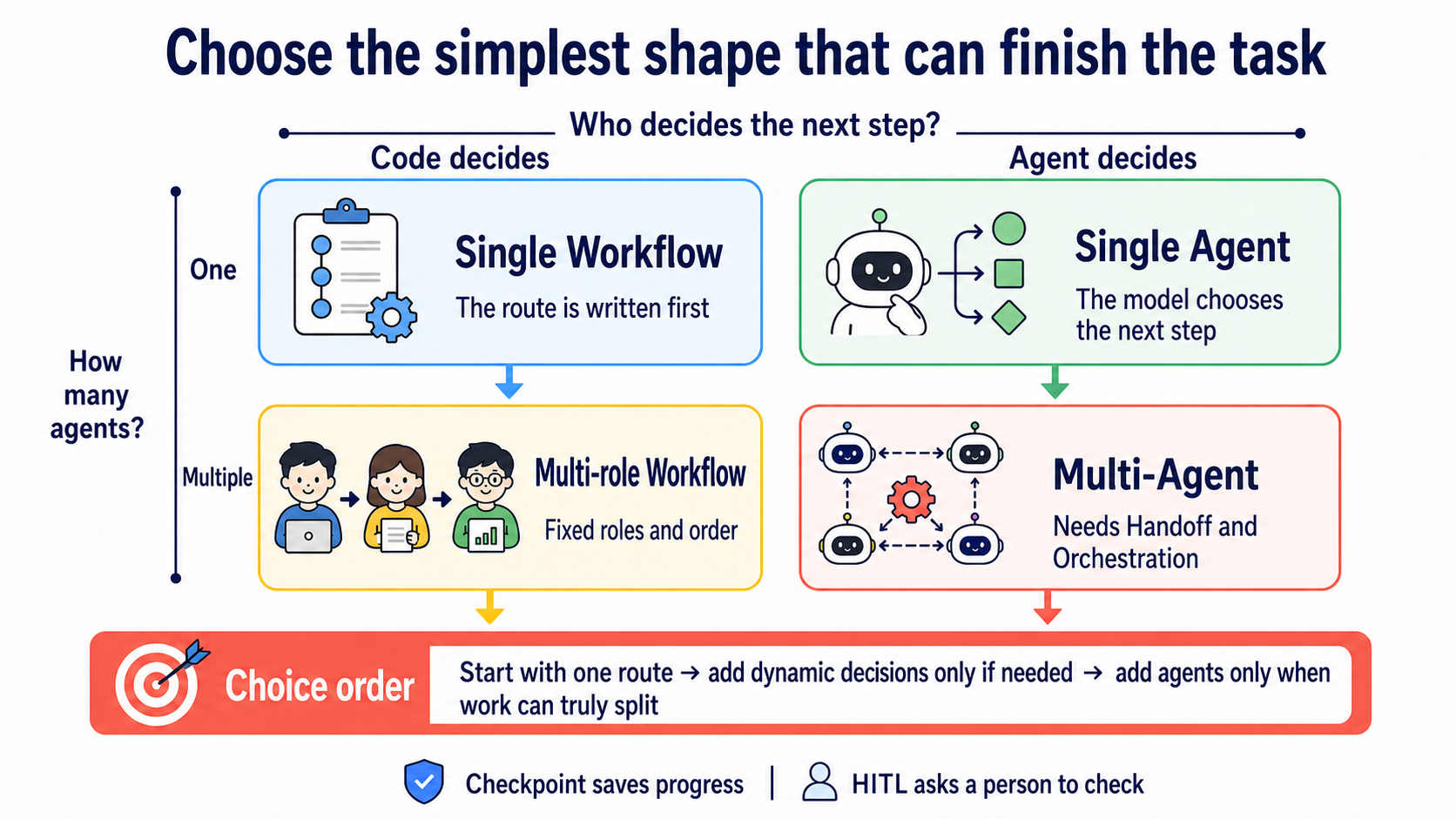

🗺️ Start with This Choice Map

Open full-size image (new tab)

Ask two questions first: Who decides the next step? How many Agents are needed? If a fixed route already completes the task, stay in the upper-left corner. Each extra Agent adds another set of context, tests, and failure modes.

🚪 Entry Conditions

Complete Stage 3's six exercises first, and be able to explain schema → call → execute → result → answer. Reading async and await helps, but is not a gate for starting Exercise 1.

⏱ Expand time, environment, and budget

• Suggested time: 2–3 weeks, about 10–15 hours. You do not need to read all 19 projects at once.
• Python: use 3.11 for the existing examples. CrewAI 1.15.18 currently requires Python >=3.10,<3.14; Python 3.14 users should create a separate 3.11 environment. The immediately following stacked 04B layer will migrate all five examples to current majors and verify them in clean environments; this content layer does not claim the old requirements are already upgraded.
• Path A: Ollama exercises have no API charge; your hardware, electricity, and download time still cost something.
• Path B: this chapter compares Anthropic Haiku. The single-run formula is input tokens ÷ 1,000,000 × $1 + output tokens ÷ 1,000,000 × $5; the total for five exercises is the sum of five actual usages, not a guessed fixed decimal.

📚 Required Reading

Read how to choose a simple shape first, then pick one of the two framework Quickstarts in Step 4. The five official links below form four reading steps; follow the order without trying to finish every page at once.

1. Anthropic — Building Effective Agents: first distinguish a workflow from an agent, and understand why you should start with the simplest approach.
2. LangGraph — Workflows and Agents: see how fixed and dynamic routes become graphs.
3. OpenAI Agents SDK — Multi-agent orchestration: compare manager-as-tools with handoffs.
4. Choose one Quickstart: LangGraph or CrewAI; go deep on just one first.

Third-party rankings can offer a candidate list, but they cannot prove a version, license, availability, or which option is “best.” Use official documentation and your own evals for those questions.

🤔 What Is an Agent Framework?

An Agent framework is a toolbox for connecting models, tools, state, retries, saved progress, and human approvals for one or more Agents. One Agent can use a framework too; multi-agent is only one later system shape, not the framework definition. A framework is not magic, and it is not the default answer for every project.

Two Dimensions to Clarify First (workflow vs agent / single vs multi)

	Workflow: the program writes the route first	Agent: the model chooses the next step dynamically
One Agent	A linear process or fixed branches	The tool loop you wrote in Stage 3
Multiple Agents	Fixed roles and order	Dynamic handoffs, a supervisor, or debate

These four cells overlap. For example, a LangGraph conditional edge can contain both fixed rules and a model decision. The table helps you ask questions; it does not force every system into a box.

When Do You Really Need Multi-Agent? (Don't Force It)

Start with one Agent. Consider adding roles only when you have the following evidence:

• The task can genuinely be split into relatively independent pieces of work, each with a clear output.
• Different roles need different tools, permissions, or context, and separating them reduces confusion.
• Several directions can be explored at once, with a clear method to combine and validate them at the end.
• Your evals show that multiple Agents are more reliable than one, and the extra token, latency, and debugging cost is worth it.

Without that evidence, one Agent with good tools, good context, and a bounded loop is usually easier to test. Multiple Agents do not guarantee better accuracy or speed.

Expand the evidence and constraints

• Anthropic — Building Effective Agents recommends starting with the simplest workable approach; a framework can hide prompts and responses, so users still need to understand the underlying layer.
• Anthropic — Multi-agent Research System explains that multi-agent systems suit breadth-first, parallelizable research. Its 90.2% is a relative improvement on a particular research eval, not a rule for “90% of use cases”; that system used about 15× the tokens of ordinary chat, and this cannot be generalized to every task.
• Cognition — Don't Build Multi-Agents emphasizes context fragmentation: when details are scattered among different Agents, overall judgment can worsen. The article does not claim that “90% of use cases should not use” them.
• The completion time for parallel branches depends on the slowest branch, rate limits, retries, and final integration; it is not a fixed 1/N.

Five Collaboration Patterns

Supervisor (a supervising Agent) is like a team lead: it breaks up work and combines answers. Worker (a working Agent) is like a team member: it receives only the data and tools needed to finish its own task.

Pattern	One-line shape	Good for	Watch first
Routing / Handoff	A decides, then passes work to B	Support triage and expert escalation	Handoff data and permissions
Sequential	B starts only after A finishes	Processes with a fixed order	An earlier error propagates forward
Parallel	Several pieces run at the same time	Independent searches or checks	The slowest branch and merge rules
Supervisor–Worker	One supervisor assigns several workers	Breaking down and consolidating a large task	The supervisor may become a bottleneck
Debate / Peer Review	Several roles critique one another	High-risk decisions and double-checking	More roles do not make facts true

Expand patterns, papers, and the Claude Code comparison

• Routing / Handoff: OpenAI Agents SDK handoffs is the current official entry point. OpenAI Swarm remains only for educational source reading; OpenAI recommends migrating production use to the Agents SDK.
• Sequential / Supervisor–Worker: LangGraph can make nodes, edges, state, and checkpoints explicit.
• Parallel: suitable for independent research directions; if tasks share substantial context or depend closely on one another, separating them can instead lose information.
• Debate / Society: further reading includes the AutoGen paper, CAMEL, ChatDev, and Generative Agents. A paper shows that one design can be studied; it does not make that design your production default.
• A Claude Code subagent is another runtime-built-in route: configuration files isolate context and tools, so you do not need to write Python orchestration yourself. The full comparison is in Stage 5.5.

Choose a Tool by Need

Your current situation	Look at first	Why
A simple tool loop is already enough	Raw SDK / the Stage 3 approach	Most transparent and easiest to debug
You need graph-based state, checkpoints, and HITL	LangGraph	A low-level orchestration runtime with clear control
You want a quick role-based prototype	CrewAI	Agents, Tasks, and Crews are easy to start; Flows also support persistence and human feedback
You already use the OpenAI ecosystem and need handoffs and tracing	OpenAI Agents SDK	The official SDK; Sandbox Agents are still beta
A Python / .NET Microsoft team	Microsoft Agent Framework	Stable, with AutoGen and Semantic Kernel migration guides

For Ollama exercises, start with the LangGraph or CrewAI route. Do not change frameworks because the tool list crosses a fixed number; use evals first to see whether context, wrong-selection rate, and latency are actually getting worse.

Expand advanced tool patterns

• Dynamic tool selection: search or route to a small set of relevant tools first, then give them to the model. See LlamaIndex tools.
• Tool composition: connect A's output directly to B's input, reducing unnecessary intermediate prose.
• Tool-augmented retrieval: treat a retriever as a tool, then let the Agent decide the next step from the result; full RAG comes in Stage 6.

These three approaches do not necessarily require a framework. A framework's value is writing less repeated code and retaining state and traces; a raw SDK can implement them too.

🛠 Hands-on Exercises

Install the folder's requirements first, then run its offline test. After you see success, use the README in the same folder to choose Ollama Path A or Anthropic Path B.

Exercise 1: Same Agent, Two Frameworks

Outcome: run the same search-and-summarize task through LangGraph and CrewAI, then explain what work each framework hides.

Set-Location examples/stage-4/01-same-agent-two-frameworks
py -3.11 -m pip install -r requirements.txt
py -3.11 test.py

Budget: Path A has a $0 API charge per run; Path B uses $1 / $5 per million input / output tokens. If you run all five exercises once, this chapter's total is the sum of the five actual token costs.

Exercise 2: Multi-Agent Role Assignment

Outcome: give the researcher, writer, and reviewer one clear job each, and see the output from every handoff.

Set-Location examples/stage-4/02-multi-agent-roles
py -3.11 -m pip install -r requirements.txt
py -3.11 test.py

Budget: Path A has a $0 API charge per run; Path B uses the same formula. More roles usually add prompts and calls, but there is no fixed multiplier, so record the actual tokens.

Exercise 3: Graph-Based Workflow

Outcome: create branches, checkpoints, and an HITL pause point in LangGraph, then continue from the saved point.

Set-Location examples/stage-4/03-graph-workflow
py -3.11 -m pip install -r requirements.txt
py -3.11 test.py

Budget: Path A has a $0 API charge per run; Path B is calculated from actual tokens. A checkpoint saves progress; it does not automatically lower model charges.

Exercise 4: Generated-Code Actions vs JSON Tools

CodeAct lets the model write code as its action. It is like asking an assistant to make a temporary tool for itself: flexible, but all model-generated code is untrusted and must run in a sandbox or constrained environment, never arbitrarily on the host.

Outcome: compare constrained CodeAct with a JSON tool call on the same problem, and explain which route is easier to validate.

Set-Location examples/stage-4/04-codeact-vs-json-tool
py -3.11 -m pip install -r requirements.txt
py -3.11 test.py

Budget: Path A has a $0 API charge per run; Path B is calculated from actual tokens. A sandbox, container, or managed execution environment may have additional charges.

Exercise 5: Schema-Validated Agent Output

Type-safe means defining the cells of a form first, then checking that the right kind of data is in every cell. Pydantic can validate the shape and bounds of Structured Output; it cannot guarantee that the answer itself is true.

Outcome: have Pydantic AI return answer, confidence, and sources, and watch invalid data be rejected.

Set-Location examples/stage-4/05-typed-agent
py -3.11 -m pip install -r requirements.txt
py -3.11 test.py

Budget: Path A has a $0 API charge per run; Path B is calculated from actual tokens. Retries after schema-validation failure also incur token costs.

Expand paths and debugging entry points

Every folder has a trilingual README, starter.py, starter_anthropic.py, test.py, and test_anthropic.py. Install its requirements first and then run the mock test; after it succeeds, follow the README to start a real model:

1. Exercise 1 README
2. Exercise 2 README
3. Exercise 3 README
4. Exercise 4 README
5. Exercise 5 README

If py -3.11 cannot find Python, run py -0p to see installed versions. Do not force-install CrewAI 1.15.18 on Python 3.14; create a Python 3.11 virtual environment.

🎒 Recommended Mini-Project: A Human-Checked Research-Summary Workflow

Combine the five exercises into a small project: one researcher finds sources and one writer prepares a summary; the program saves state and finally stops at HITL, waiting for you to check sources before producing output. Start with just two roles, not a ten-person team.

Success criterion: you can restart the program and continue from a checkpoint; without a person's approval, the process never enters its final publishing step.

🎯 Curated Projects

Start with LangGraph ⭐⭐⭐⭐⭐: it lets you directly see state, edges, checkpoints, and interruption points. The other 18 entries are grouped by purpose below; the ratings indicate this chapter's learning order, not a popularity ranking.

Existing framework information checked: 2026-08-27 UTC; Bifrost: 2026-09-03 UTC

Category	Project	Who it suits	Status, license, and limits	Rating
Production orchestration	LangGraph	Those who need state, checkpoints, HITL, and replayable workflows.	Maintained; MIT. A low-level runtime that requires more design work from you.	⭐⭐⭐⭐⭐
	Microsoft Semantic Kernel	Existing .NET / Java / Python Microsoft stacks.	Maintained; MIT. Microsoft also provides guidance for migrating to Agent Framework.	⭐⭐⭐⭐
	Agno	Those who want to manage Agents, Teams, and Workflows with AgentOS.	Maintained; Apache-2.0. Its platform scope is broad; confirm you really need the whole stack first.	⭐⭐⭐⭐
	Microsoft Agent Framework	New Python / .NET Microsoft Agent projects.	Python 1.x stable; MIT. Official AutoGen and Semantic Kernel migration paths are available.	⭐⭐⭐⭐
Rapid prototyping / multi-agent	CrewAI	Quick researcher → writer → reviewer role workflows.	Maintained; MIT. Flows support persistence, resume, and human feedback.	⭐⭐⭐⭐
	Microsoft AutoGen	Maintaining existing group-chat, debate, or peer-review projects.	Maintenance mode and community maintained; CC-BY-4.0. Existing Python projects use autogen-agentchat 0.7.x; use Agent Framework for new Microsoft projects and avoid old 0.2 tutorials.	⭐⭐⭐⭐
	OpenAI Agents SDK	Those already in the OpenAI ecosystem who need handoffs, guardrails, and tracing.	Maintained; MIT. Sandbox Agents are beta, which does not mean every production problem is solved.	⭐⭐⭐⭐⭐
	Deep Agents	Those who need a full harness for planning, filesystem access, subagents, memory, and permissions.	Maintained; MIT. Built on LangGraph; it may be too heavy for a simple Agent.	⭐⭐⭐⭐
	OpenAI Swarm	Those who want to read small source code to understand Agents and handoffs.	Frozen / historical educational use; MIT. Superseded by the Agents SDK; do not use it for new production projects.	⭐⭐⭐⭐ (education)
	Strands Agents	AWS / Bedrock teams, or those needing Python / TypeScript SDKs.	Maintained; Apache-2.0. The canonical repository moved from the old sdk-python to harness-sdk.	⭐⭐⭐⭐
Special paths	Hugging Face Smolagents	Those comparing CodeAct and tool calling, or using the Hugging Face ecosystem.	Maintained; Apache-2.0. Model-generated code must run in isolation.	⭐⭐⭐⭐
	Pydantic AI	Those who value typed dependencies, structured output, and validation.	Maintained; MIT. Schema validation checks shape, not semantic correctness.	⭐⭐⭐
	Letta	Long sessions, cross-day memory, and persona-stable assistants.	Maintained; Apache-2.0. It is memory-first; the full memory concepts come in Stage 6.	⭐⭐⭐⭐
	Vercel Eve	TypeScript / Vercel teams that need durable workflows, sandboxes, and approvals.	Public Preview; Apache-2.0. It was only made public in 2026-06, so its API may still change quickly.	⭐⭐⭐
Specialized	LlamaIndex Agents	Document-heavy, retrieval, and knowledge workflows.	Maintained; MIT. Its strength is data and retrieval, not every orchestration situation.	⭐⭐⭐
	AgentScope	Researching multi-agent systems and needing visualization and studio tools.	Maintained; Apache-2.0. Check community, deployment, and language needs first.	⭐⭐⭐
	LangChain	Those who need high-level building blocks for models, retrieval, tools, and middleware.	Maintained; MIT. Complex orchestration can move down to LangGraph.	⭐⭐⭐
Infrastructure	Bifrost	Those who want to self-host a gateway, connect multiple providers through one interface, and practise routing, fallback, and load balancing.	Maintained; Apache-2.0. It is infrastructure rather than an Agent framework; adaptive load balancing, clustering, and some guardrails are enterprise features.	⭐⭐⭐⭐
	LiteLLM	Those who want a Python SDK or OpenAI-compatible proxy for switching among providers.	Maintained; the root LICENSE says everything except enterprise uses MIT, while enterprise/ has a separate license. It is not an Agent framework.	⭐⭐⭐⭐

✅ Self-Check Before Stage 5

• I can distinguish an Agent Loop, an Agent framework, a Workflow Graph, and a multi-agent system instead of treating them as the same thing.
• I start with the simplest approach and add Agents only when I see measurable evidence.
• I can explain what State, Checkpoint, Handoff, and HITL each save or control.
• I have run the offline tests for all five exercises and completed at least one Ollama Path A.
• I know CodeAct must run in isolation and that type-safe output still needs its contents checked.

Once you have done all of this, move on to Stage 5 — Claude Code Ecosystem. If the four cells are still unclear, return to the choice map above; you do not need to reread the 19-row table.

💡 Expand troubleshooting and next steps

• To learn about Claude Code subagents, go to Stage 5.5.
• To learn about checkpoints and long-term memory, go to Stage 6.
• To put multi-agent systems into production and add evals and observability, go to Stage 7.
• To see more frontier harnesses, dynamic workflows, and failure research, go to Stage 7.5.
• To let an Agent operate a browser, computer, or sandbox, go to Stage 8.
